X Ray Inspection System 5μm Focal Spot 60 Degree Tilt BGA PCB Testing

Name: X Ray Inspection System 5μm Focal Spot 60 Degree Tilt BGA PCB Testing
Brand: WELLMAN
Price: 1 USD

Brand Name : WELLMAN

Model Number : X6800

Certification : CE,ISO9001,FDA

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 7 work days

Packaging Details : Wooden case

X-ray Type : Closed,microfocus

Max tube voltage : 90kv

Effective area : 130mm*130mm

Pixel size : 85μm

Resolution : 1536*1536

Max tube current : 200μA

Supply Ability : Worldwide supply

Contact Now

X Ray Inspection System 5μm Focal Spot 60 Degree Tilt BGA PCB Testing

Wellman Microfocus X Ray Inspect Machine X6800

Key Advantages

Closed-type X-ray tube: Over 10,000 hours lifespan and maintenance-free operation
Next-generation 5-inch HD digital flat panel detector FPD
60° tiltable FPD without sacrificing magnification performance
Auto-navigation function: Worktable moves directly to the clicked position
530×530mm table with 10KG load-bearing capacity
5-axis linkage system featuring flexible speed adjustment
Programmable inspection protocols supporting automated batch inspection
Intuitive operation for rapid defect identification - just 2 hours of training required

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Effective area	130mm*130mm
Pixel size	85μm
Resolution	1536*1536
Frame rate	20fps
Tiltable angle	60°

Table Specifications

Size	530mm*530mm
Detectable area	500mm*500mm
Max load	10kg

Equipment Specifications

Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1360mm (L) * 1365mm (W) * 1730mm (H)
Weight	1200kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 8G RAM, 500GB SSD
Displayer	24" HDMI LCD

Safety Features

Window and back door safety interlock system
Transparent lead glass observation window for safe internal viewing
Electromagnetic safety switch locks when X-ray is active
Tube protection prevents leaving software without closing X-ray
Radiation leakage: No leakage (≤1μSv/h, international standard)
Emergency stop button near operation position

Software Capabilities

Core Functions

Presentation of inspection results (void rate distance area etc.)
Adjustable axis movement speeds (slow/normal/fast)
Real-time display of motion axis coordinates
Navigation window for precise table positioning
Adjustable image brightness, contrast and gain
Product list for saving and recalling inspection parameters
X-ray tube operation controlled via mouse/keyboard with real-time voltage and current display
Status bar indicating interlock pre-heat and X-ray status

Voids Rate Measurement

Automatic calculation of solder ball voids with NG/OK indication
Adjustable grayscale threshold, pixel, contrast, and size filtering
Manual void addition via polygon/freehand drawing
Parameter saving for consistent product inspection

Measurement Functions

Distance measurement between points
Distance rate calculation for through-hole soldering
Angle measurement between points
Radius measurement capability for circular components
Perimeter measurement function for square components

Automatic Inspection

Automatic feature recognition for distinctive inspection points
Array inspection for regular patterns
Manual inspection point setting

Working Principle

X Ray Inspection System 5μm Focal Spot 60 Degree Tilt BGA PCB Testing

X6800 PCB X-ray Inspection Machine working principle

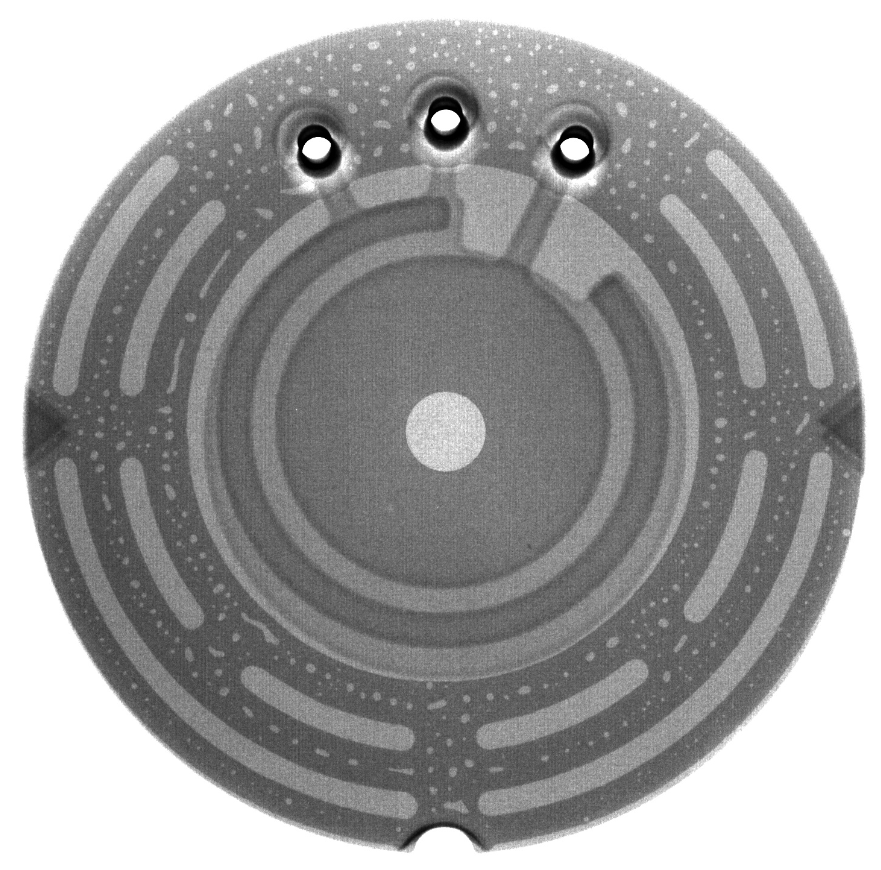

Application Examples

BGA Solder Bridge

BGA Solder Voids

PCB Through-Hole

IC Voids and Gold Wire

LED Solder Voids

LED Gold Wire Crack

Capacitor

Inductor

Sensor

Thyristor Surge Suppressors

Fiberglass

Cable

Diode

Steel Pipe Welding Gap

Automobile Electronics
